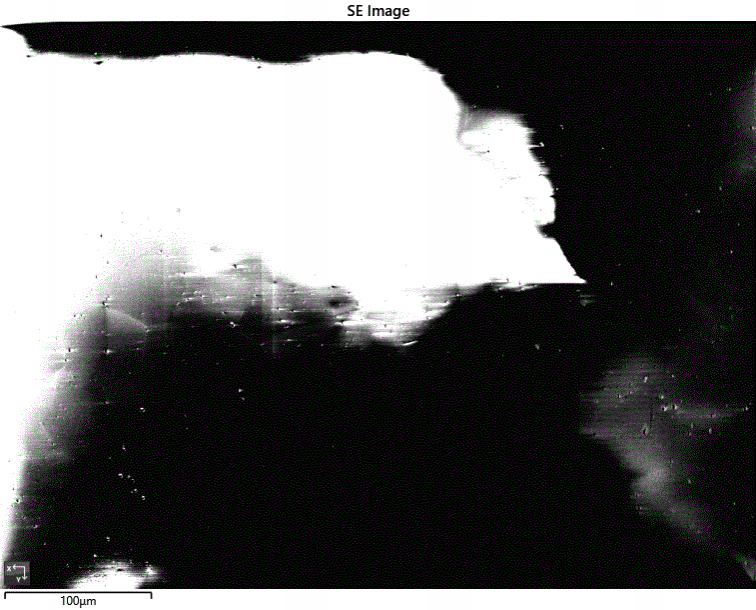

There are a number of ways to reduce or even eliminate charging on insulators:

  • Ensure that there is no surface topography
  • Ensure that the polish is very good
  • Only turn the beam on once the sample has been tilted to 70°
  • Coat with gold before the final polishing stage – this will fill cracks and voids with a conducting network
  • Work in variable pressure / low vacuum mode (if your SEM has this capability): ideally in the pressure range of 10-50 Pa. Any higher and the signal of the diffraction pattern will be too weak
  • Work at higher speed so that the beam does not stay in one area for a long time
  • Work at lower probe currents and/or accelerating voltages
  • Prepare a conductive tract from the sample to the stub/holder – using some conductive paint or metallic tape

But sometimes you will have to apply a conductive coat...

The key point for EBSD coating is to keep the coat very thin, typically in the range of 2-5nm, if it is too thick, the signal to noise ratio will decrease significantly and very poor EBSPs will result. It the coating is too thin, there won’t be sufficient conductive material to dissipate the charge. Ideally the coat should be carbon either sputtered or evaporated onto the sample, but it is possible to use other coating materials such as gold or tungsten. In cases where the coat is a little too thick, it may be possible to obtain good EBSPS by increasing the accelerating voltage in order to penetrate through the coat.
